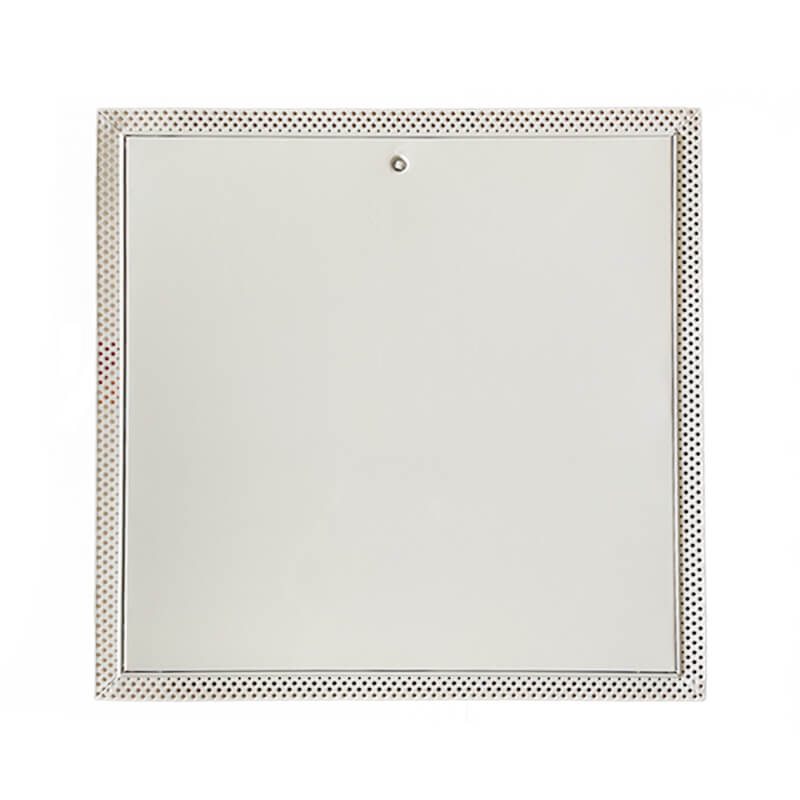

AD-GB Metal access pannel c/w install frame ,Steel Access Panel

Steel Access Panel Hinge: Concealed, pivoting rod type. (For wall applications, a continuous exposed piano hinge is suggested.)

Product Specification:

  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    AD-GB

  • Type :

    HVAC Systems

  • Material :

    Steel

  • Surface Finish :

    Powder coated

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Inquiry Now
May you like

Application

  • Designed for use in acoustical plaster walls and ceilings

Product Features

  • Door is recessed 5/8" and is lined with self-furring lath
  • Expansion casing bead with 3" wide galvanized lath

Access Door Specifications:

  • Material: Steel or Stainless Steel: 16 gage door, 14 gage mounting frame
  • Door: Recessed 5/8" and lined with self-furring galvanized lath
  • Door Frame: Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
  • Hinge: Concealed, pivoting rod type. (For wall applications, a continuous exposed piano hinge is suggested.)
  • Standard Latch:Flush to surface, screwdriver operated cam latch
  • Optional Latches/Locks:Cylinder lock and key, allen head cam latch, spanner head cam latch
  • Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
  • AVAILABLE SIZES(Special sizes available upon request)

Size:

  • Any size available
  • Standard size (Neck size=A)

Item Code

size(mm)

AD-GB-12

305x305

AD-GB-18

457x457

AD-GB-24

610x610

AD-GB-36

610x914
