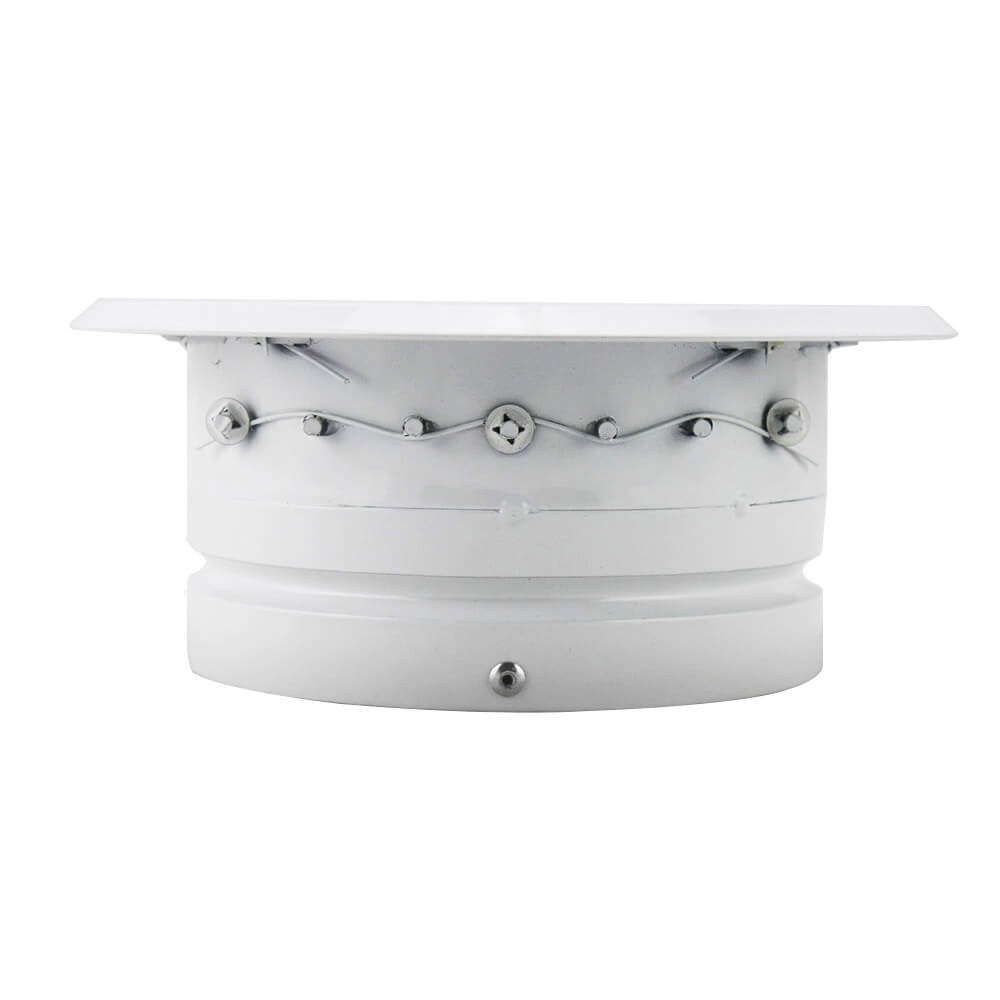

DDG-A1RD Round Double Deflection Air Grille With Damper,round air grille with OBD for air conditioning

Double Deflection Air Grille Blades can be adjusted manually and individually to provide air deflection in both horizontal and vertical planes

Product Specification:

  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    DDG-A1RD

  • Type :

    HVAC Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.0mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Inquiry Now
May you like

Construction:

  • Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange
  • Blade: Aerofoil blades from aluminum profile
  • Blade spacing: 20mm as standard

Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
  • Grilles have two sets parrallet blades, DG-AV: vertical on the front and the horizontal at the rear, DG-AH: horizontal on the front and the vertical at the rear
  • Blades can be adjusted mannually and individually to provide air deflection in both horizontal and vertical planes.
  • Maximum affective pressure areas can be achieved when the blades are positioned at 0 degree.

Details:

  1. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish
  2. Material thickness: 0.8mm, 1.0mm, 1.2mm for option
  3. Accessory: OBD, Neck adaptor

Size:

  • Any size available
  • Overall face size = Neck size +60mm

Standard size:

Item Code

Neck Size(mm)

Face Size(mm)

DDG-A2RD-100

100

160

DDG-A2RD-150

150

210

DDG-A2RD-200

200

260

DDG-A2RD-250

250

310

DDG-A2RD-300

300

360

DDG-A2RD-350

350

410

DDG-A2RD-400

400

460
