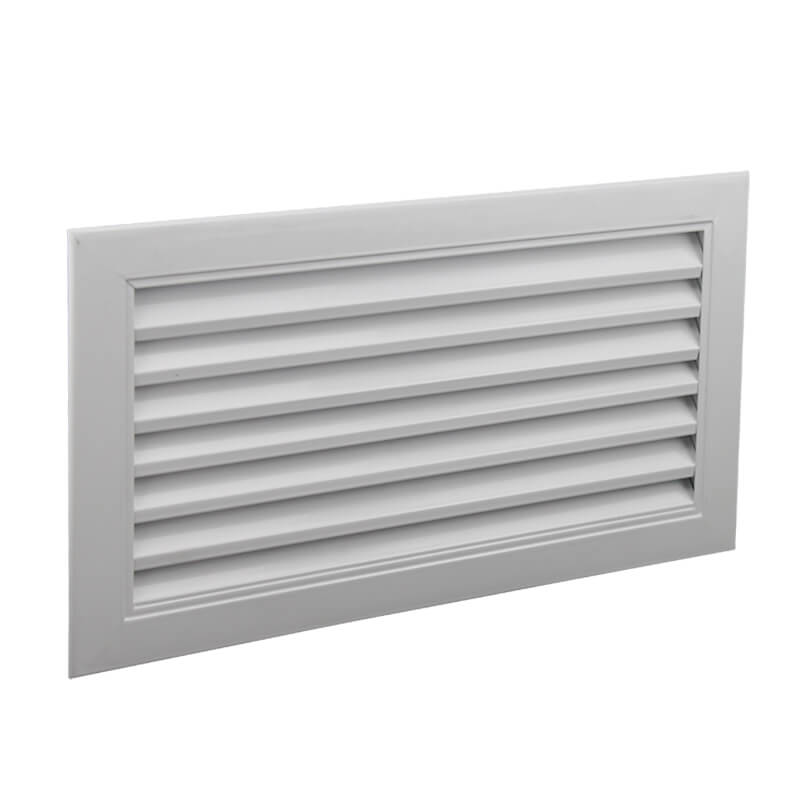

SG-FA Fixed type return air grille, aluminum air intake grille,  fresh air grille - Aluminum air diffuser & grille
SG-FA Fixed type return air grille, a...

Morbi accumsan ipsum velit. Nam nec tellus a odio tincidunt auctor a ornare odio. Sed non mauris vitae erat consequat auctor eu in elit.

Product Specification:
  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    SG-FA

  • Type :

    HVAC Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.0mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Construction:

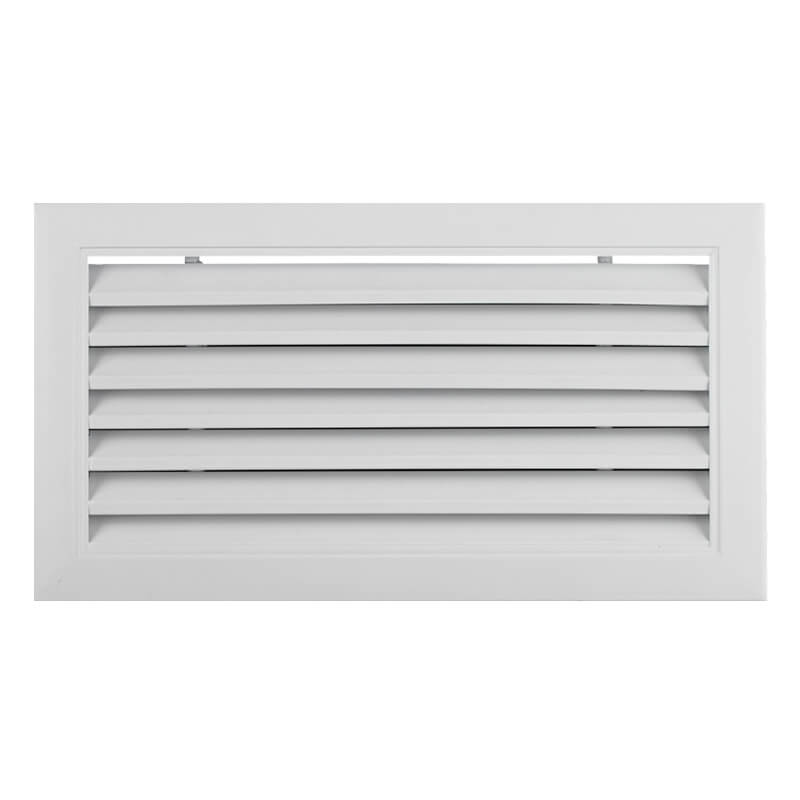

  • Frame : High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
  • Blades : Aerofoil blades in 45° from aluminum profile
  • Blades spacing:  19mm as standard

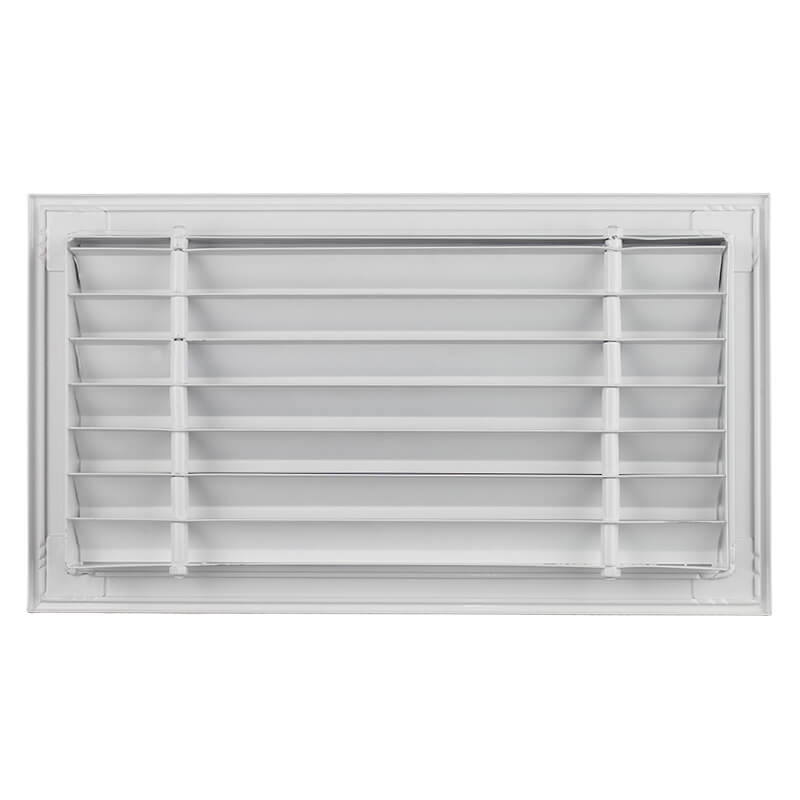

  • Support pipe: 8mm diameter aluminum pipe

Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

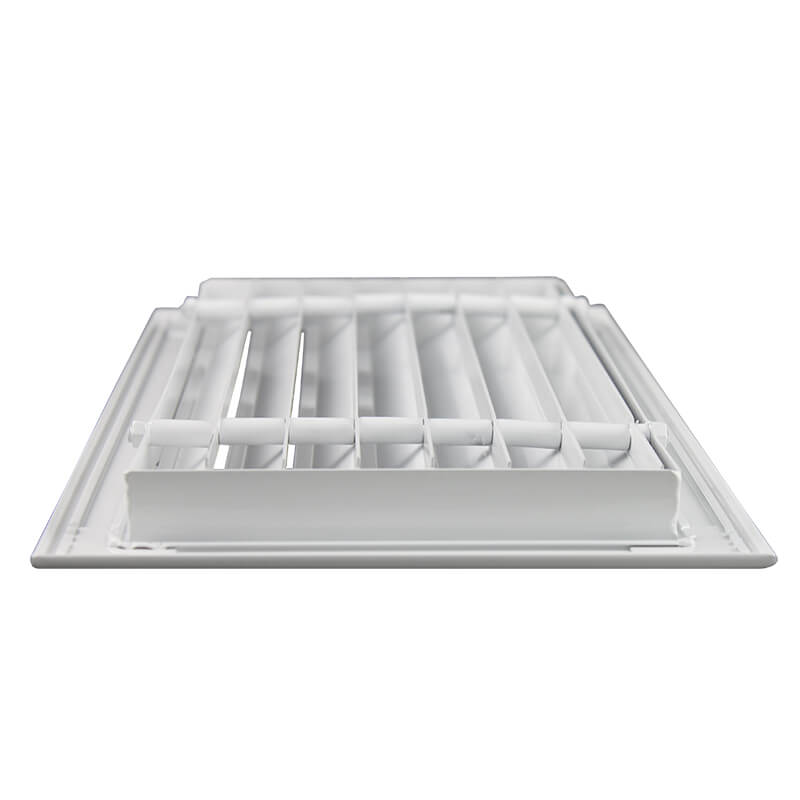

  • The blades is fixed to the frame by rivets and support pipe, which assure the quite, smooth and rattle free operation.
  • Blades are set at angle of 45° with 12mm spacing, and fixed to the frame.

Details:

  1. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish
  2. Material thickness: 0.8mm, 1.0mm, 1.2mm for option
  3. Accessory: Air Filter, OBD

Size:

  • Any size available
  • Overall face size = Neck size + 55mm

Standard size:

W×H            mm×mm W×H            mm×mm W×H            mm×mm W×H            mm×mm W×H            mm×mm
150×150 300×200 400×150 500×150 650×100
200×100 300×250 400×200 500×200 700×250
200×125 300×300 400×250 500×250 750×100
200×150 350×125 400×300 500×300 750×150
250×100 350×150 400×400 500×350 750×200
250×125 350×200 450×100 500×400 750×250
250×150 350×250 450×150 600×125 900×150
250×200 350×300 450×200 600×150 900×200
250×250 350×350 450×450 600×200 1000×200
300×100 400×100 500×100 600×250 1200×150
300×125 400×125 500×125 600×300
