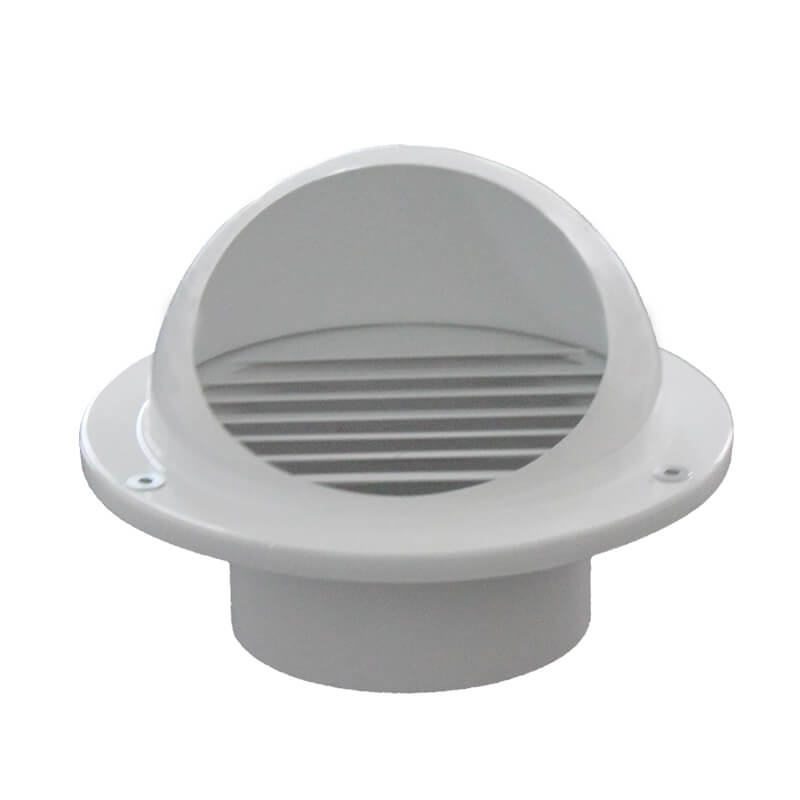

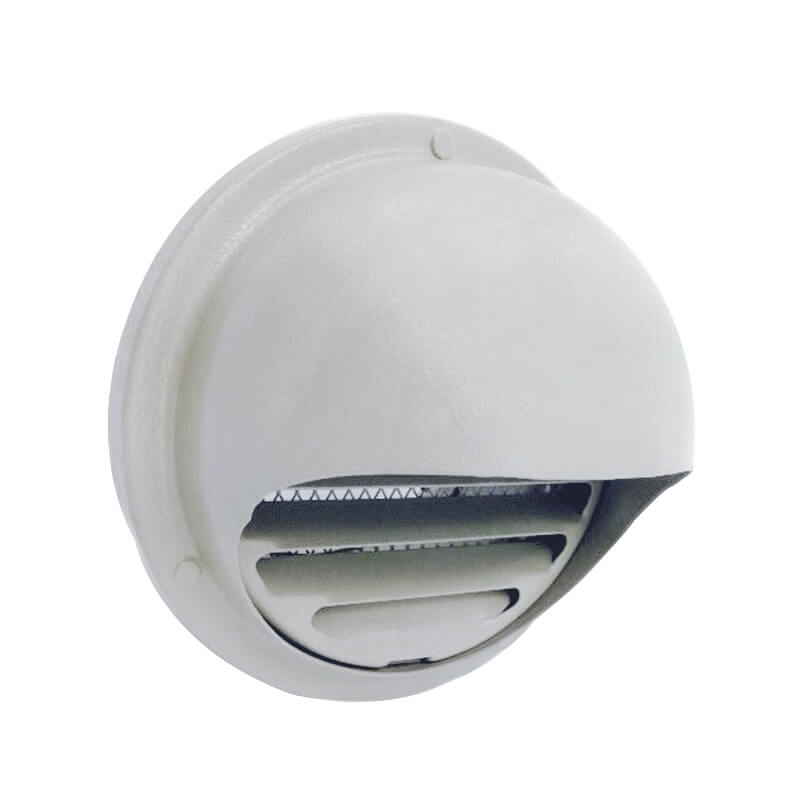

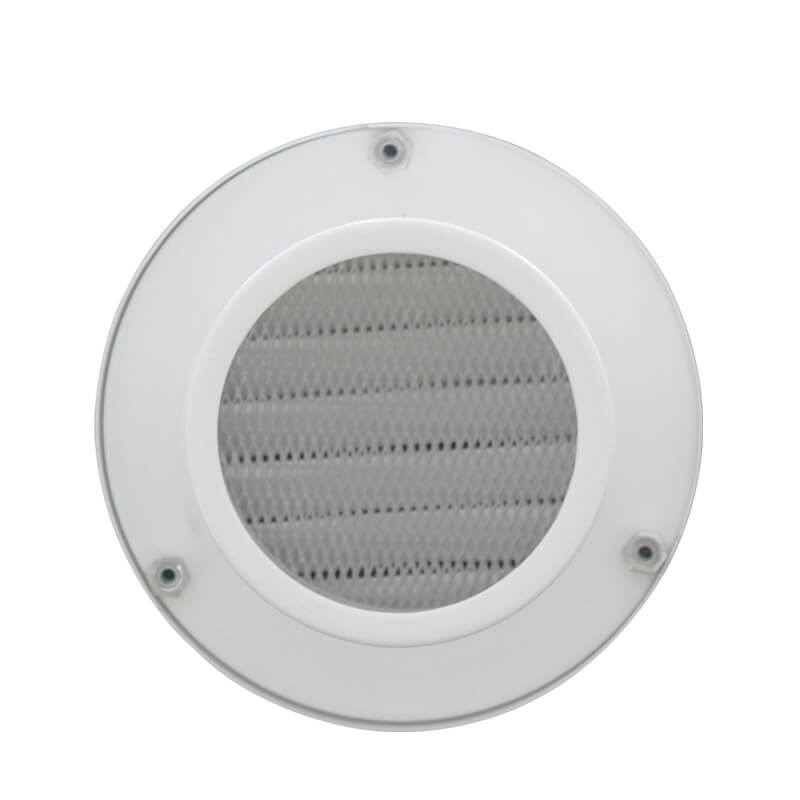

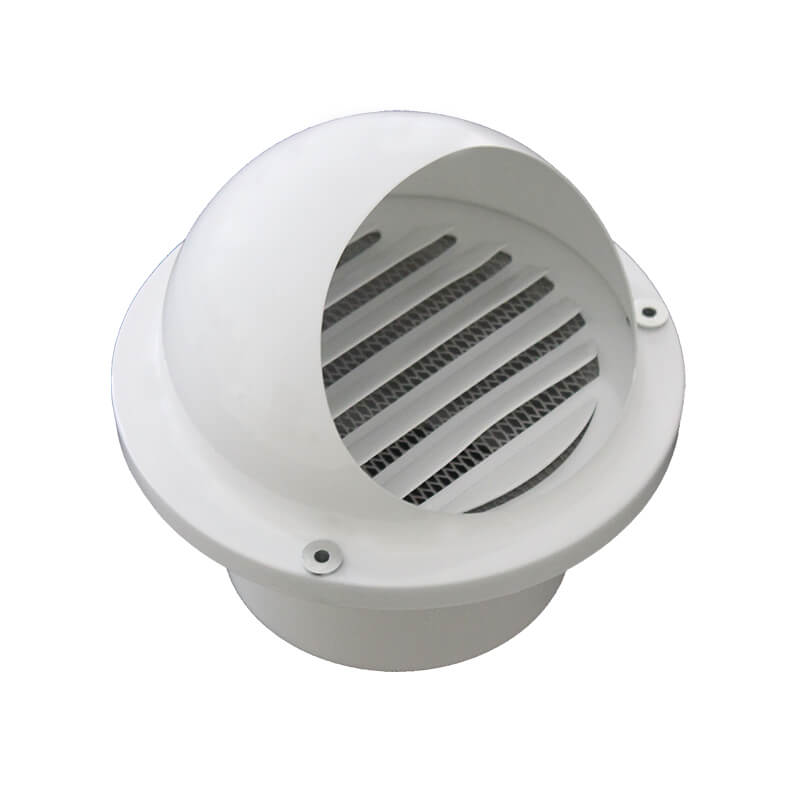

EV-AN waterproof aluminum air vent cap, air vent cap with mesh, air vent cap with louver - Fresh air vent
EV-AN waterproof aluminum air vent ...

Morbi accumsan ipsum velit. Nam nec tellus a odio tincidunt auctor a ornare odio. Sed non mauris vitae erat consequat auctor eu in elit.

Product Specification:
  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    EV-AN

  • Type :

    Fresh Air Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.0mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Construction:

  • Frame & inner louver: High quality extruded aluminum alloy(A6063)  sheet.

Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
  • This type of air vent is incorporated with a set of louver blades. It is  is commonly used as exhausted outlet and ventilation on the exterior walls of washrooms, kitchens, warehouses, houses,apartments, condominiums, gymnasiums...ect.
  • There are inverted spring hooks located on the neck , which are used to secure the device onto the wall or duct.
  • EV-AF c/w aluminum air filter is for option.

Details:

  1. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010
  2. Material thickness: 1.0m for option

size:

Item Code

Neck
Φ D (mm)

Face
Φ A (mm)

Φ C

L

EV-AN-100

95

150

115

120

EV-AN-120

120

213

140

130

EV-AN-150

142

213

165

155

EV-AN-200

195

267

215

180

EV-AN-250

248

325

265

212
