SD-A1 Square Ceiling Diffuser,square air diffuser,air diffuser

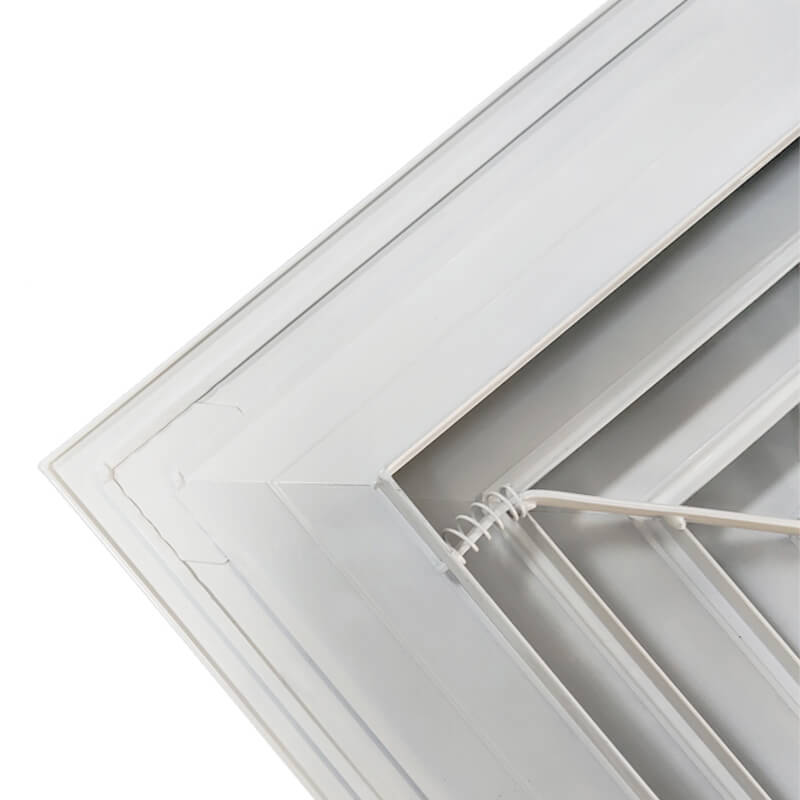

The louvered-type core is fixed to the frame with aluminum pins loaded with steel springs. The core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance, and damper adjustment.

Product Specification:

  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    SD-A1

  • Type :

    HVAC Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.0mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Inquiry Now
May you like

Construction:

  • Frame: High quality extruded aluminum alloy(A6063) profile with 27.5mm flange width
  • Core: High quality extruded aluminum alloy(A6063) profile in 38.4 degree


Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
  • Lourvered type core is fixed to the frame with aluminum pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.


Details:

  1. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish
  2. Accessory: OBD, Neck adaptor


Size:

  • Any size available
  • Overall face size = Neck size +125m=A+125mm


Standard size

Item Code

Neck Size(mm)

Face Size(mm)

SD-A1-150

150x150

275x275

SD-A1-225

225x225

350x350

SD-A1-300

300x300

425x425

SD-A1-375

375x375

500x500

SD-A1-450

450x450

575x575

SD-A1-475

475x475

600x600
