JD-B Aluminum Ball Jet Nozzle Diffuser for airport,jet diffuser,ball jet diffuser

Ball Jet Diffuser type of jet air diffuser is specially designed to use in applications where a high airflow capacity and a long throw supply system are required

Product Specification:

  • Place of Origin :

    Guangdong, China (Mainland)

  • Model Number :

    JD-B

  • Type :

    HVAC Systems

  • Material :

    Extruded Aluminum Alloy (Minimum 1.3mm Thickness)

  • Surface Finish :

    Powder coated / Anodized

  • Standard Color :

    RAL9016,9010

  • OEM Service :

    Available

  • Customer's logo :

    Available

Inquiry Now
May you like

Construction:

  • Frame & nozzel: High quality extruded aluminum alloy(A6063) sheet.

Description:

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
  • This type of jet air diffuser is specially designed to use in the application where the high airflow  capacity and long throw supply system is required. Airflow can be easily adjusted from a jet to a diffused pattern and the orientation of the airflow can be adjusted by moving the inner core.
  • The discharge nozzel with spherical outlet mounted to a housing, The mounted circular flange is removable for easy installation and maintenance..

Details:

  1. Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010
  2. Material thickness: 1.3mm

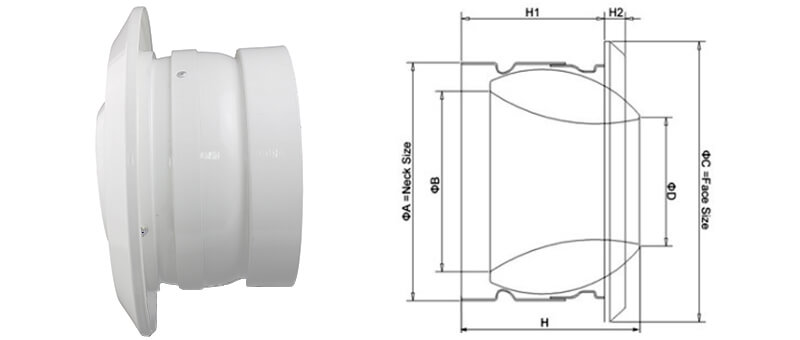

Size:

Item Code

N (mm)

F (mm)

D2(mm)

L(mm)

E(mm)

JD-B-100

98

149

48

76

22

JD-B-125

122

172

61

95

24

JD-B-150

147

200

75

110

23

JD-B-160

157

210

80

110

23

JD-B-200

197

266

105

138

25

JD-B-250

247

310

128

175

27

JD-B-315

312

384

174

200

30

JD-B-350

347

433

185

210

30

JD-B-400

397

495

210

227

31

JD-B-450

447

523

233

240

32

JD-B-500

497

618

256

250

32

JD-B-630

627

779

323

280

43
